Building a 2275cc Stroker
How To: Assembly Steps


Engine Calculator

If you have Excel 97, you can load the Engine Calculator and determine your Compression Ratio and Engine Displacement.



Pictures of the Parts

   Rods
      Chromoly Connecting Rods and the 82mm Crank

   Inside of the clearanced case
      Clearanced Case

   Fullflow machining
      Tapped Oil passage for Full Flow

   The heads
      044 Heads from CB Performance

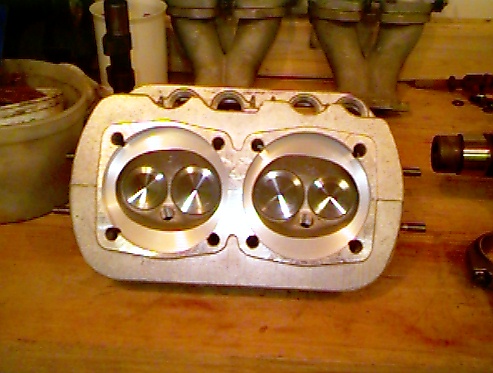

View of the SS Valves and the Combustion Chamber

   The Weber Carburetors

Weber 44 IDFs







Back to the top

A Picture of all of the miscellaneous parts
      Bearings, Gaskets, etc. Chromoly Pushrods and Head Studs
      Engine hardware, exhaust nuts, swivel feet adjusters, etc.

   The crank

82mm Stroker Crank (Welded)

   Balanced piston

94mm Piston w/Balance marks

   Balanced Flywheel and Pressure Plate

Balanced Pressure Plate and Flywheel

   Melling High Volume Oil Pump

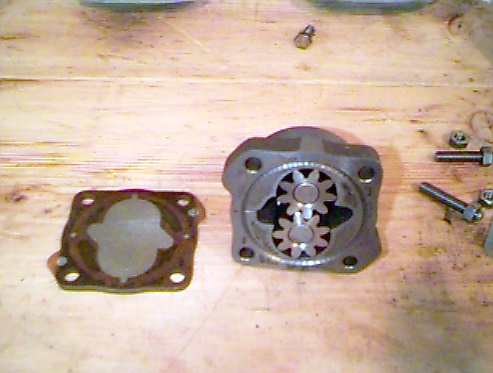

      See how thick the housing is on the H.V. pump? Dissassembled view of the Oil Pump

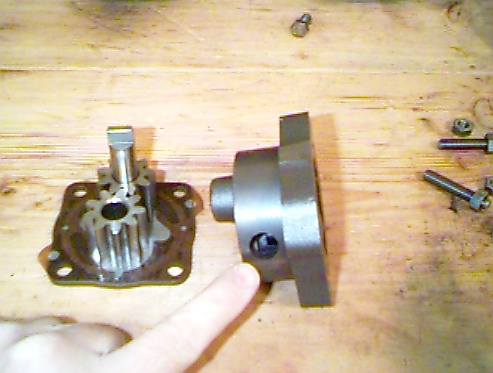

      This is the hole that needs to be threaded and plugged
